High Temperature General Service Die
Formed Pump & Valve Packing Sets.

Features / Benefits:

• Positive sealing with less gland pressure no binding of valve stem.
• Non-abrasive - sleeves last longer.
• Corrosion inhibited - valve stems last longer.
• Chemical compatibility - reduce inventory costs.
• Low friction - no product dilution from cooling liquids.
• Pre-formed rings - reduce maintenance labour costs.


Typical Applications:

• High-speed pumps, and valves handling steam, condensate, and petroleum products.
• Superheated steam and applications where fire safety is critical such as oil refineries and power plants.
• Low emission valve and stem packing.

Specifications:

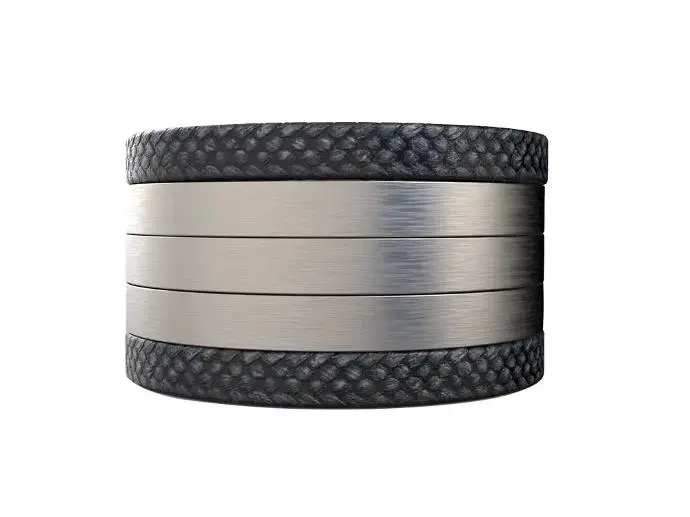

Construction :   Die formed flexible graphite c/w Thomson HS-3000M or HS4000M end rings depending on application details. Can be offered Solid or Split.

Temp. Range, Max:
To 850°F (455°C) atmosphere
To 1200°F (650°C) steam

Max Pressure: To 300 psi rotary
To 2500 psi (172 bar) in valve packing

Max Speed:  To 4000 fpm (20 m/s)

pH Range:  0-14 pH (except strong oxidizers)
