Products > Pressure Regulators > Analyzer & Instrumentation
Analyzer & Instrumentation Pressure Regulators
Typically incorporating Inconel® X750 diaphragm-sensed elements to provide strength and flexibility, our versatile Analyzer and Instrumentation range of pressure regulators include design features that make us the market leaders in this sector with products from gas cylinder regulators to ATEX certified (2014/34/EU) heated regulators.
ACS101
Auto-Changeover System: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.5

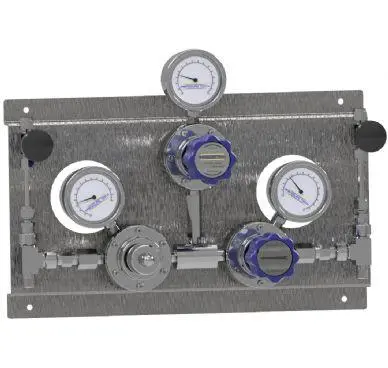

ACS240
Auto-Changeover System: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 10 bar (145 psi) / Cv 0.06

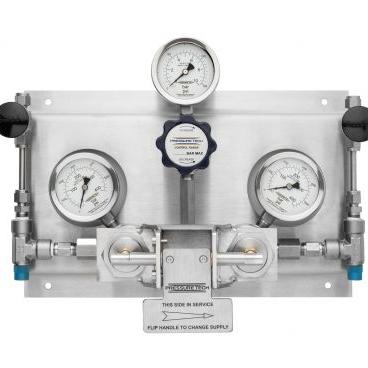

ACS310
Auto-Changeover System: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.06
ACU310
Auto-Changeover Regulator/Unit: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv: 0.06
CYL310
Cylinder Pressure Regulator Assembly: Gas / Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06
CYL540
Cylinder Pressure Regulator Assembly: Gas / Piston / Self- or Non-Venting / Max. Inlet: 550 bar (7,975 psi) / Max. Outlet: 414 bar (6,000 psi) / Cv 0.1
LF240
Low-Flow Pressure Regulator: Gas / Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 10 bar (145 psi) / Cv 0.06

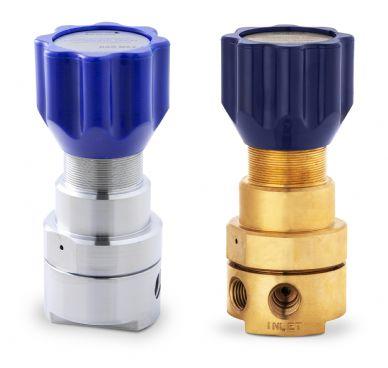

LF310
Low-Flow Pressure Regulator: Gas / Inconel® X750 Diaphragm / Disk Seat / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 or 0.15
MINI300
Compact and Low-Flow Pressure Regulator: Gas / Piston / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 100 bar (1,450 psi) / Cv 0.06
TS310
Two-Stage Pressure Regulator: Gas / Inconel® X750 Diaphragm / Disk Seat / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 25 bar (360 psi) / Cv 0.06
TS311
Two-Stage Pressure Regulator: Gas / Piston / Disk Seat / Non-Venting / Max. Inlet: 414bar (6,000psi) / Max. Outlet: 20bar (290psi) / Cv 0.06
XHM410
Heated Block Manifold Block: Gas or Liquid / Max. Pressure: 300 bar (4,350 psi) / Power Supply: 115V or 230V / ATEX, IECEx & CSA Certified
XHR310
Steam or Electric Dual-Heated Pressure Regulator: Gas or Liquid / Inconel® X750 Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 / ATEX and IECEx Certified
XHR311
Steam or Electric Dual-Heated Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 150 bar (2,175 psi) / Cv 0.06 / ATEX and IECEx Certified
XHS410
Single-Heated Pressure Regulator: Gas / Inconel® X750 Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 / ATEX, IECEx & CSA Certified
XHS411
Single-Heated Pressure Regulator: Gas / Inconel® X750 Piston / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 150 bar (2,175 psi) / Cv 0.06 / ATEX, IECEx & CSA Certified
