Products > Pressure Regulators > Hydrogen Pressure Regulators

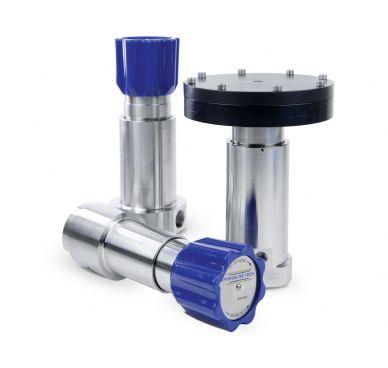

Hydraulic Pressure Regulators
Our extensive range of piston-sensed hydraulic regulators feature precision machined sensing elements for control to 1,380bar (20,000psi) and self venting is available with captured vent ports. Port sizes from 1/4" to 3/4" and are available with ratio- or dome-loaded options.

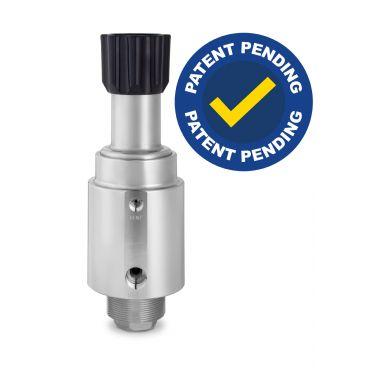

DF1034
Dual-Flow Pressure Regulator: Liquid / Piston / Self-Venting / Max. Inlet: 1,380 bar (20,000 psi) / Max. Outlet: 1,380 bar (20,000 psi) / Cv 1.5 (primary) & 0.06 (secondary)
LGC690
Low-Pressure Hydraulic Reducing Regulator: Liquid / Piston / Self-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.3
MF414
Medium-Flow Pressure Regulator: Gas or Liquid / Piston / Self- or Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 414 bar (6,000 psi) / Cv 2.0
HYD691
Low-Flow Hydraulic Pressure Regulator: Liquid / Piston / Ceramic Seat / Self- or Non-Venting / Max. Inlet: 690 bar (10,000 psi) / Max. Outlet: 690 bar (10,000 psi) / Cv 0.06
LF690
Low-Flow Hydraulic Pressure Regulator: Liquid / Piston / Ceramic Seat / Self- or Non-Venting / Max. Inlet: 690 bar (10,000 psi) / Max. Outlet: 690 bar (10,000 psi) / Cv 0.05, 0.1 or 0.3
LF691
Low-Flow Hydraulic Pressure Regulator: Liquid / Piston / Ceramic Seat / Non- or Self-Venting / Max. Inlet: 1,380 bar (20,000 psi) / Max. Outlet: 1,380 bar (20,000 psi) / CV: 0.05, 0.1 or 0.3
