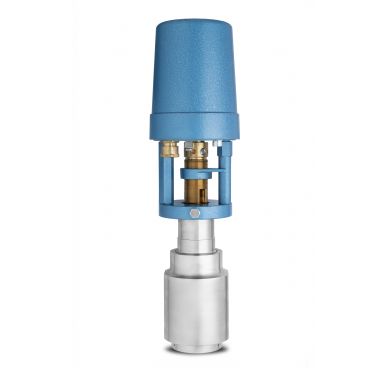

RF1034

Pressure Regulator for Hydrogen Refueling Applications: Gas / Piston / Non-Venting or Self-Venting (Captured) / Max. Inlet: 1,034 bar (15,000 psi) / Max. Outlet: 1,034 bar (15,000 psi) / Cv 0.5 or 1.0

Product Overview RF1034

INTRODUCING THE RF1034...
The RF1034 is a piston-sensed pressure regulator, designed for high pressure hydrogen refueling applications up to 1,034 bar (15,000 psi).

With a balanced main valve design as standard, the RF1034 offers accurate control of the high pressures typically associated with hydrogen refueling points.

The high-flow RF1034 is designed to ISO 19880-3 and offers convenient access to the seat cartridge in the
base of the regulator for simplified servicing.

RF1034 Features

• High-flow Cv 0.5 or 1.0 for refuelling times as per SAE J2601
• Designed to ISO 19880-3 for safe performance
of high pressure gas valves used in gaseous hydrogen stations
• Optional automated control
• Easy access to seat cartridge for simplified servicing

RF1034 Applications

• Hydrogen Refueling Stations

RF1034 Specifications

Maximum Rated Inlet Pressure: 1,034 bar (15,000 psi)
Outlet Ranges: Up to 1,034 bar (15,000 psi)
Design Proof Pressure: 150% max. working pressure
Seat Leakage: In accordance with ANSI/FCI 70-3
Weight
Pneumatic: 11.4 kg (25.1 lbs)
Spring: 7 kg (15.4 lbs)
Electric: 8 kg (17.6 lbs)
